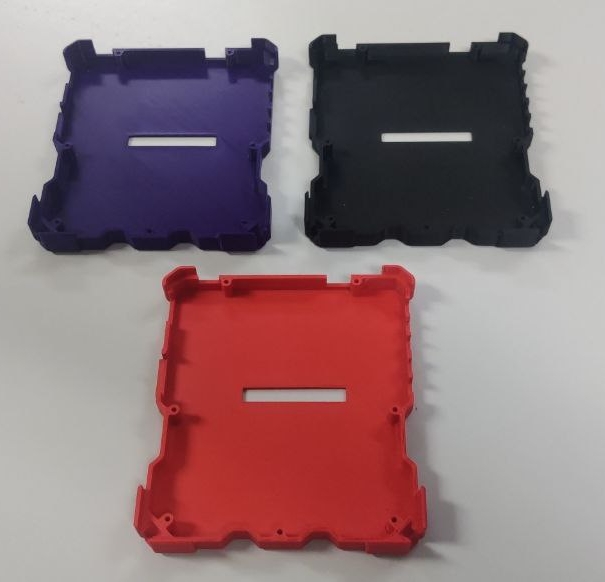

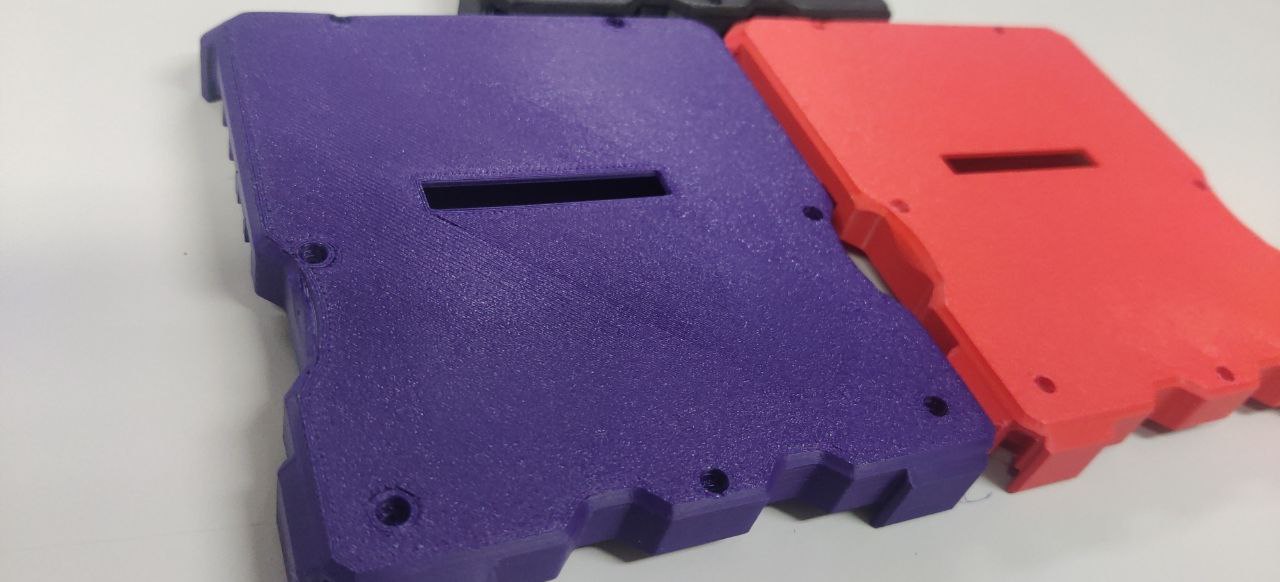

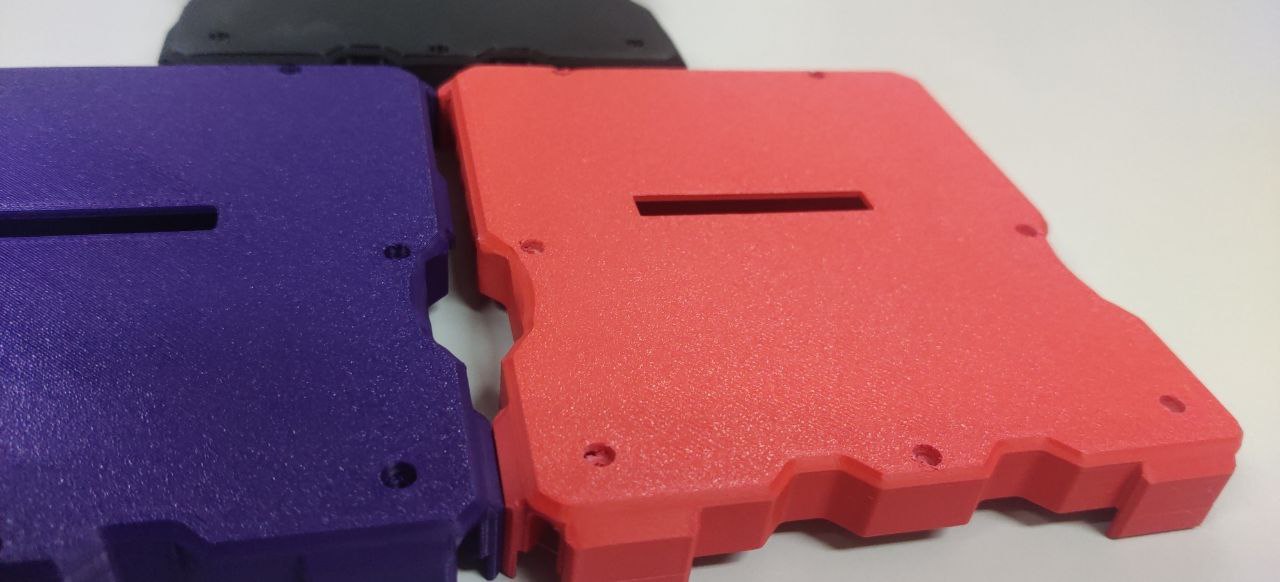

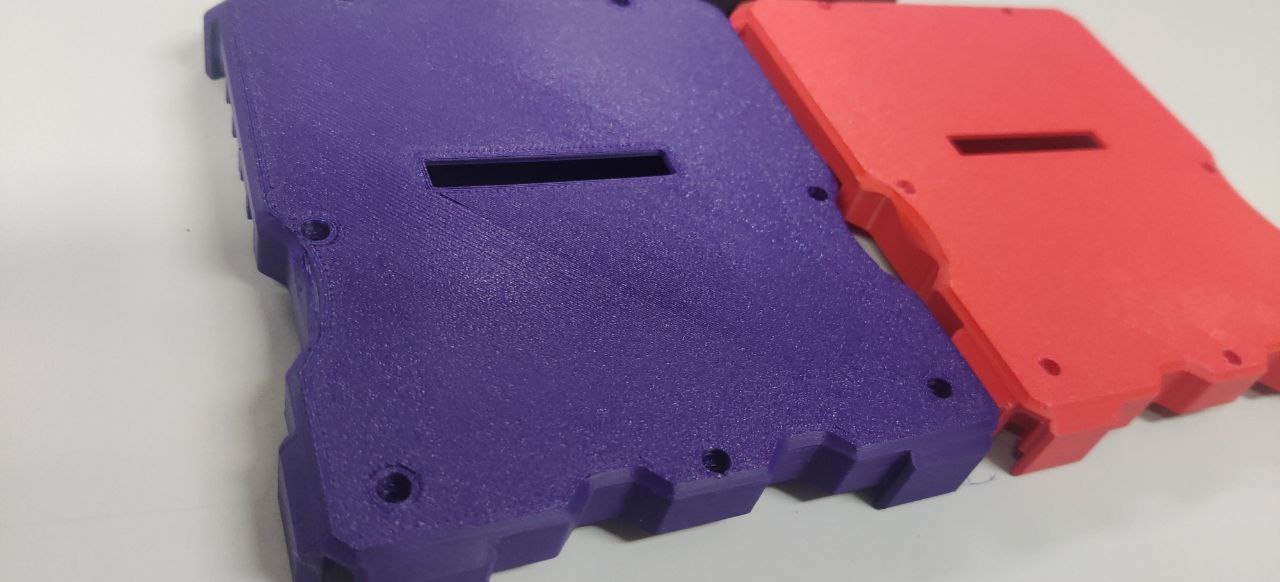

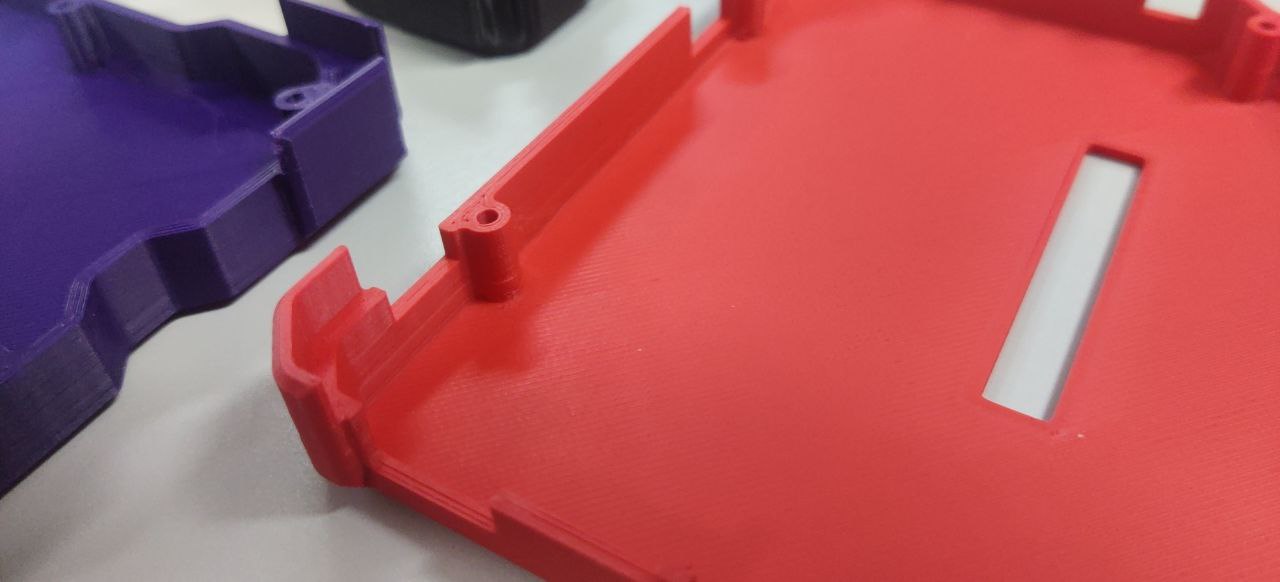

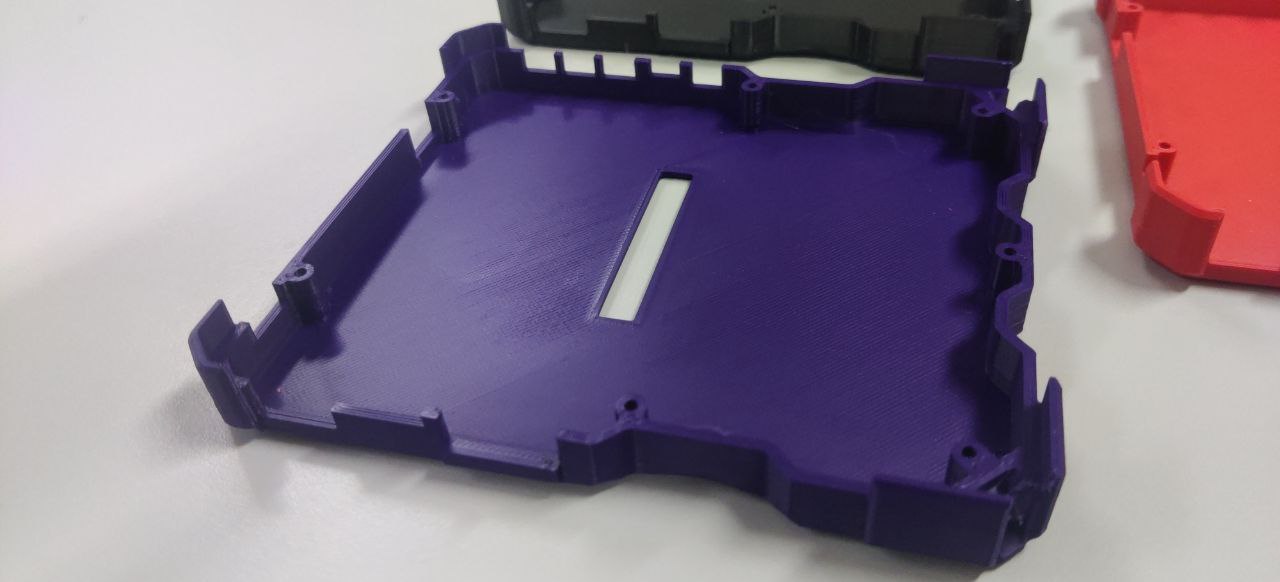

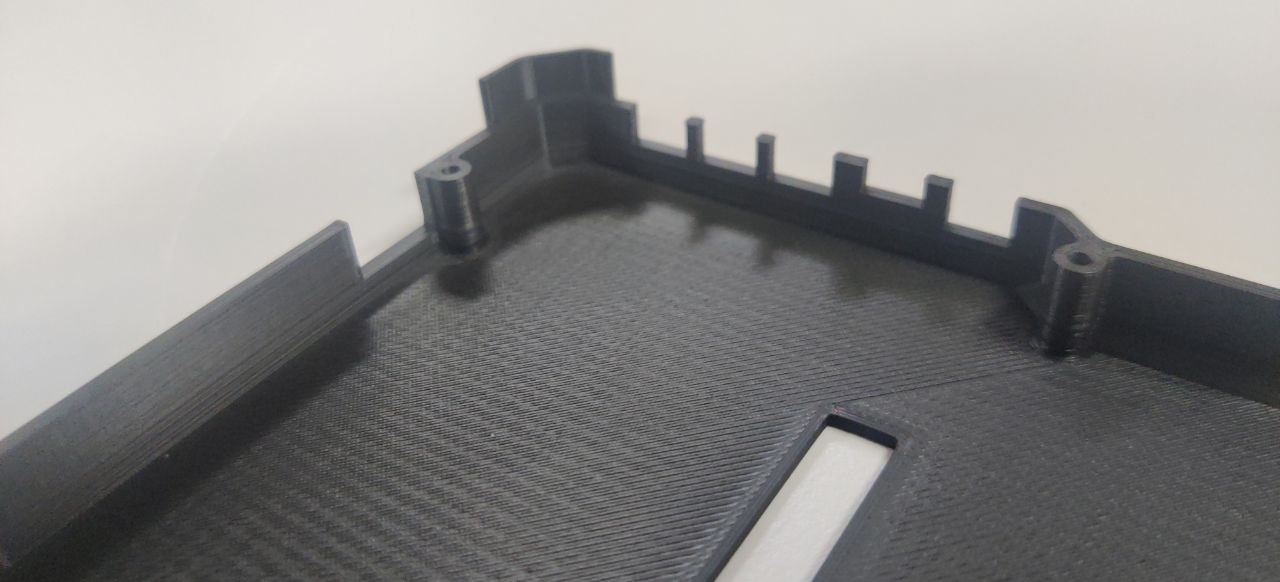

3D printed case
The design files for the 3D printed case of Tanmatsu can be found on Github and may be used under terms of the CERN-OHL-P license.
Filament
The 3D printed case and spacer included with Tanmatsu was printed using Extrudr XPETG filament on Prusa Mini printers.
Design files
The design is available as a FreeCAD project. If you are looking for files ready to 3D print you can find those in the releases section of the repository. Please note that early units (revision 1 and 2 boards) have the audio jack located in a slightly different location compared to the production version of the mainboard. Variants for the revision 1 and 2 boards are available as separate models.
Special thanks
We want to thank Jelle Haandrikman for recreating fhe design in FreeCAD, allowing everyone to edit the design with ease using a FOSS toolchain as well as our friends over at YTec 3D for developing the Tanmatsu case and designs. Check out their amazing projects.
Community additions
This section lists tested community designs for modifications and accessories.
